QUANTUM RTLS 2.0
QUANTUM RTLS 2.0
Breakthrough 3D real-time location system technology
HYPER-ACCURATE 1.5 mm 3D RTLS
Quantum RTLS 2.0 is a hyper-accurate location technology that digitizes the real-time 3D location of any given thing with unrivaled precision. It is the world’s first and only true real-time location system (RTLS) that offers millimeter-accurate, real-time positioning with wide-area scalability. ZeroKey technology enables just-in-time process control, complete automation, and the highest level of operational visibility by harnessing millimeter-accurate positioning data to digitally twin operations in real-time.
Features
- 1.5 mm 3D real-time location tracking
- Local to wide-area scalability
- More reliable than UWB & BLE
- Rapid installation via automatic network calibration
- Low latency, high update rate
- Self-deployable, open API & extensible plugin interfaces
- Actionable insights into facility-wide operations and processes
QUANTUM RTLS 2.0 IN ACTION
With a range of trackable tags suitable for diverse applications, ZeroKey technology enables unprecedented operational visibility of industrial manufacturing, warehousing, automotive, and supply chain operations to drive real-time optimization and integration of processes across entire organizations. Through the hyper-accurate digitization of both time and location, Quantum RTLS 2.0 helps businesses increase productivity and reduce costly errors by verifying that the necessary people, parts, and tools are at the right place at the right time.
Quantum RTLS 2.0 achieves a positioning accuracy of 1.5 mm by using ultrasonic signals for ranging between devices. The system measures the time-of-flight of the ultrasonic signal as it travels through the air to calculate the distance from a Quantum RTLS 2.0 mobile to nearby anchors. When a mobile is within line of sight to four or more anchors, multilateration is used to calculate the exact location of the mobile in 3D space and in real-time.
Modernizing the Supply Chain with Digitization
Quantum RTLS 2.0 digitizes error-prone manual processes to give businesses full visibility of their supply chain operations. The technology uncovers data-driven insights, providing clients with opportunities to optimize, automate, and evolve their supply chain processes into intelligent workflows. With reduced order fulfillment times and fewer errors, ZeroKey’s logistics clients are drastically reducing their labour and spoilage costs.
Creating Safer Workplaces
Ensure frontline worker safety with the ability to detect unsafe situations accurately, reliably and in real-time. The hyper-accurate 3D location data captured by Quantum RTLS 2.0 allows businesses to monitor when workers enter dangerous areas and perform real-time collision detection and avoidance with AGVs and equipment. By triggering instant alerts when unsafe behaviour is detected or when geofenced areas are breached, Quantum RTLS 2.0 drastically reduces workplace injuries.
Powering Facility-wide Operational Visibility
Quantum RTLS 2.0 unlocks total operational visibility by digitizing, automating, and seamlessly integrating physical operations with 1.5mm 3D accuracy. With access to precise location data and actionable insights, clients are empowered to make better informed and more timely decisions. Complete transparency into dynamic operations and processes helps businesses boost efficiency, reduce errors, and maximize output.
Revolutionizing Manufacturing Processes with Spatial Data
Quantum RTLS 2.0 offers factories of the future the ability to automate physical processes by digitally twinning production environments with unprecedented accuracy. The technology is easy to deploy, easy to scale, and offers complete transparency into dynamic operations. With the ability to digitize and digitally twin manufacturing processes with 1.5mm precision in real-time, Quantum RTLS 2.0 helps clients realize efficiency gains and enhanced quality and process control.
SENSOR OPTIONS
A range of high precision sensors suitable for any application

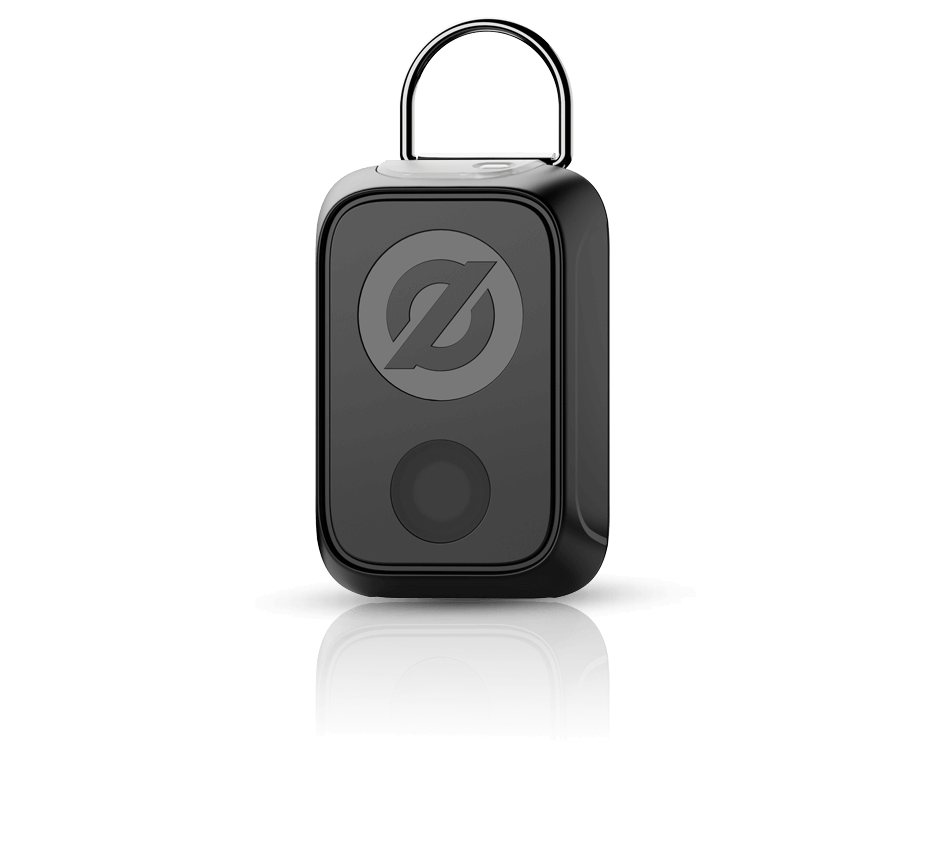

QTM - HMC10
- Intrinsically Safe, Waterproof & Dustproof
- 24-Hours of Continuous Operation
- Health & Safety Personnel Tracking
- Vibration & Audible Alarm Alerts
- IP65 Rated for use in Harsh Environments

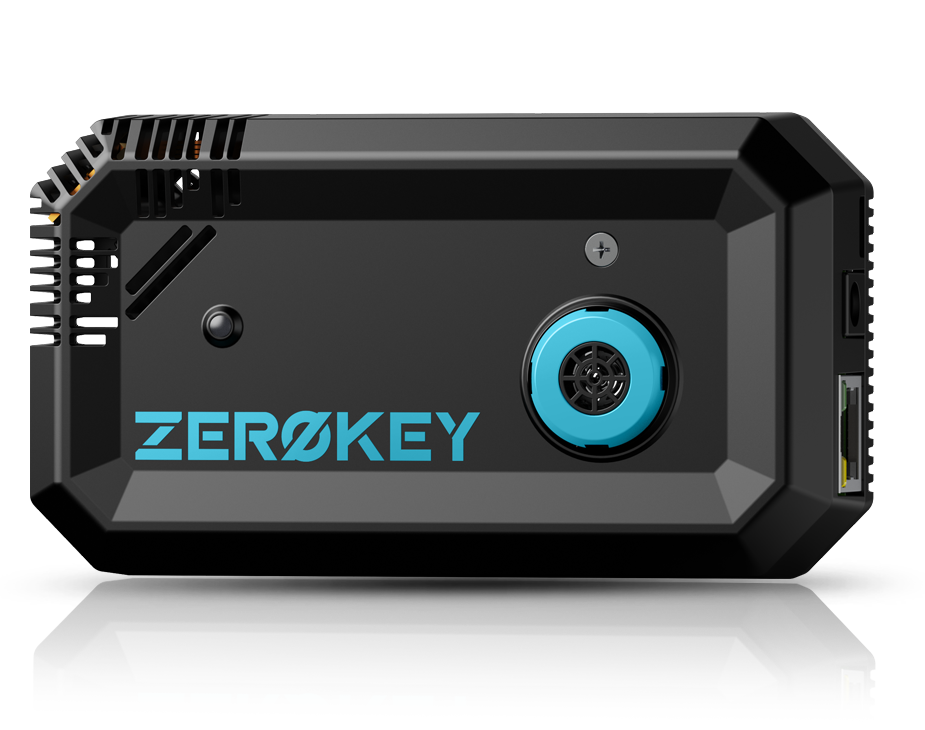

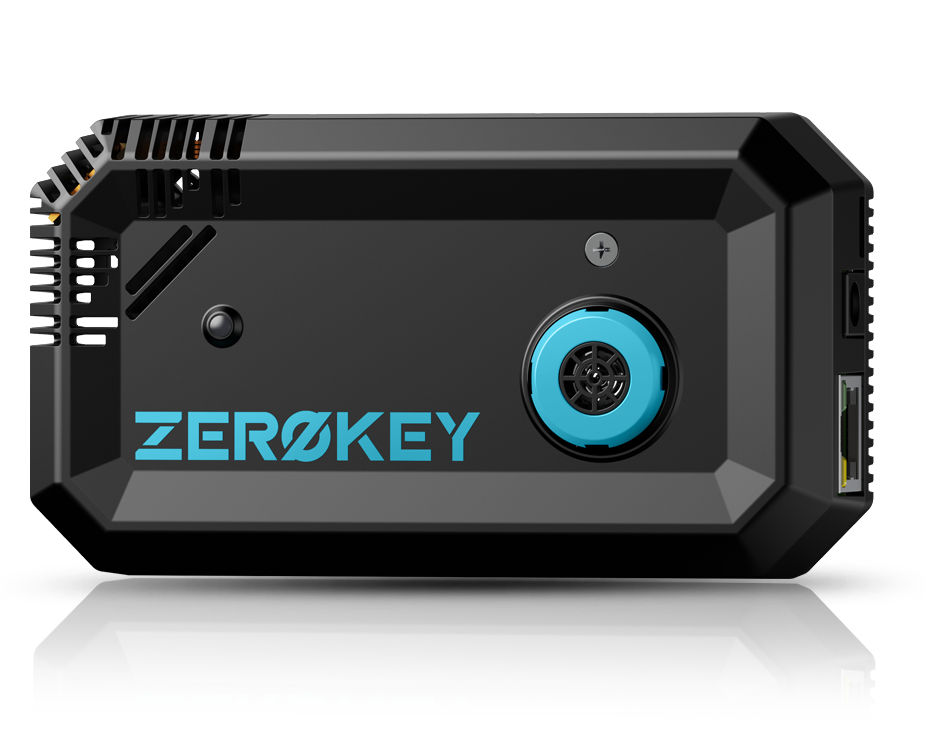

QTM - EAP10
- Daisy-Chainable PoE+ (802.3at) Anchor
- Connects Directly to Edge Device
- Hyper-Accurate, Automated Localization
- Rugged Industrial Design
- Flexible Geometry Supports any Use Case

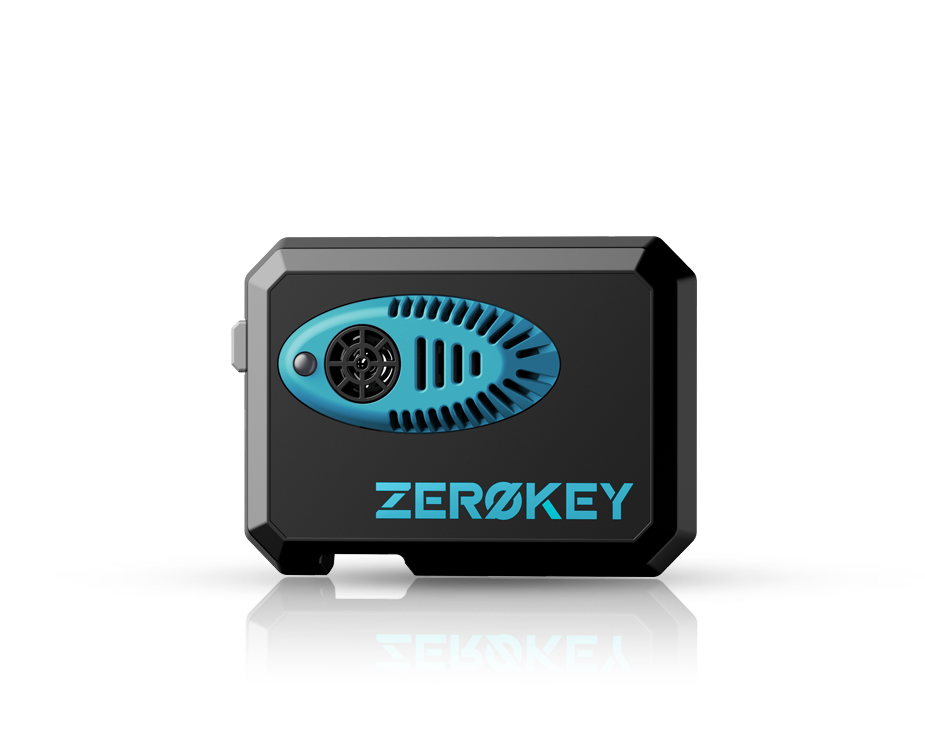

QTM - UAR10
- Micro-USB Rechargeable Universal Anchor
- Portable Wireless Operation
- Rugged Industrial Design
- Open API & Extensible Plugin Interfaces
- Industry-Leading Calibration Software

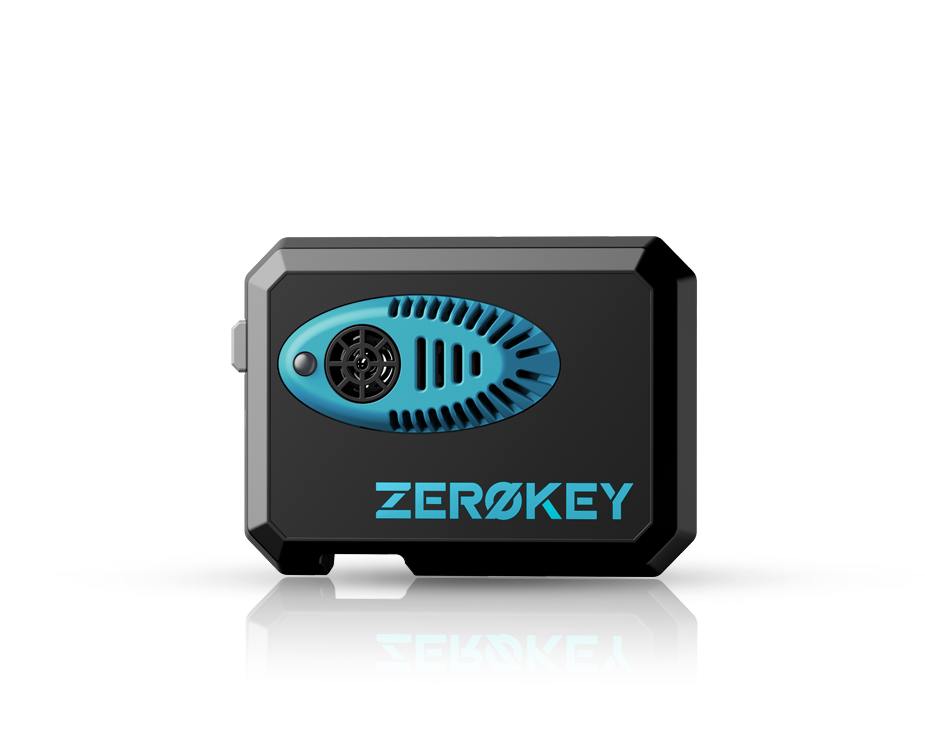

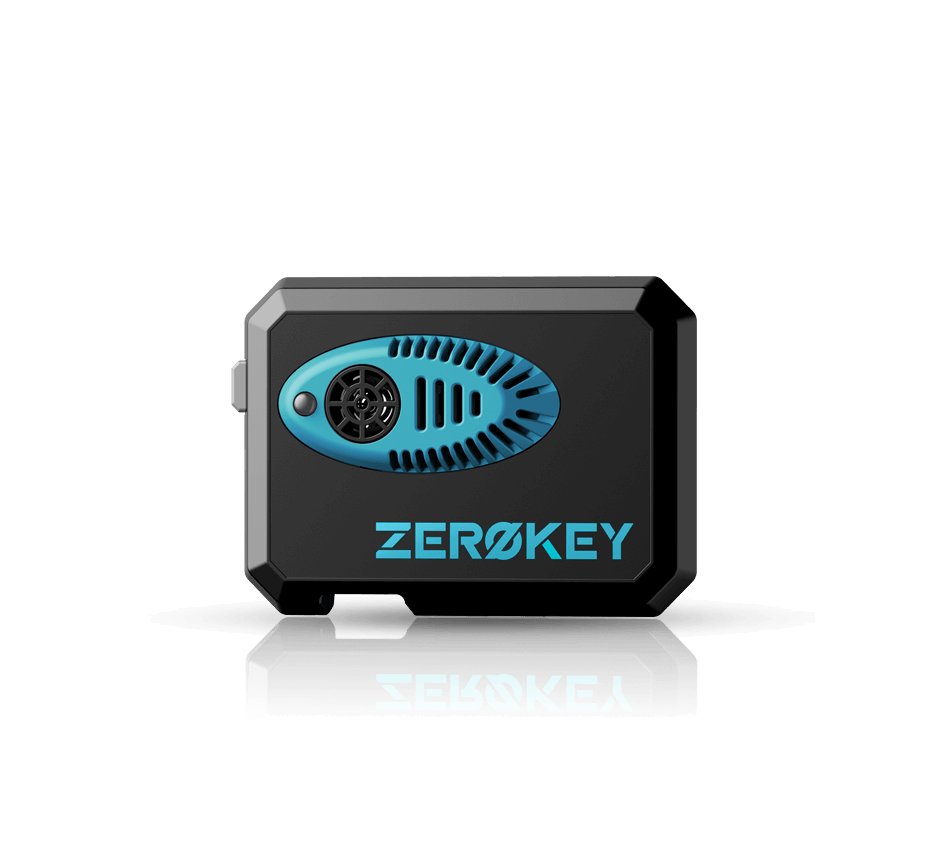

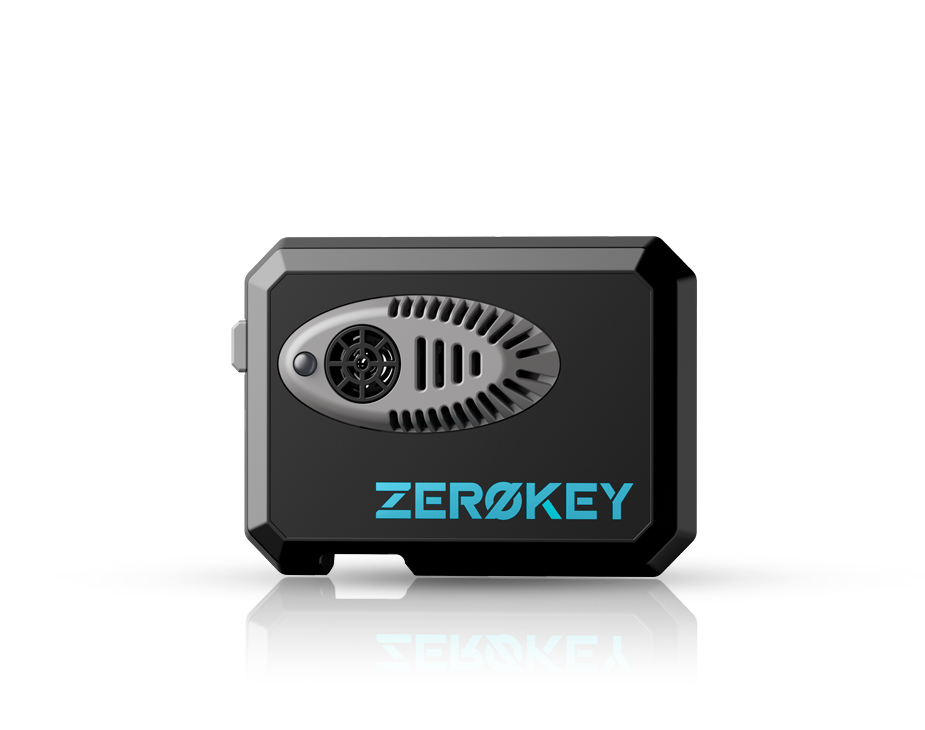

QTM - UMR10
- Micro-USB Rechargeable Universal Mobile
- Hyper-Accurate, Always Available Position
- Push-Button for Event Triggering & Recording
- Industry-Leading Calibration Software
- Tracks Critical Assets in Real-Time

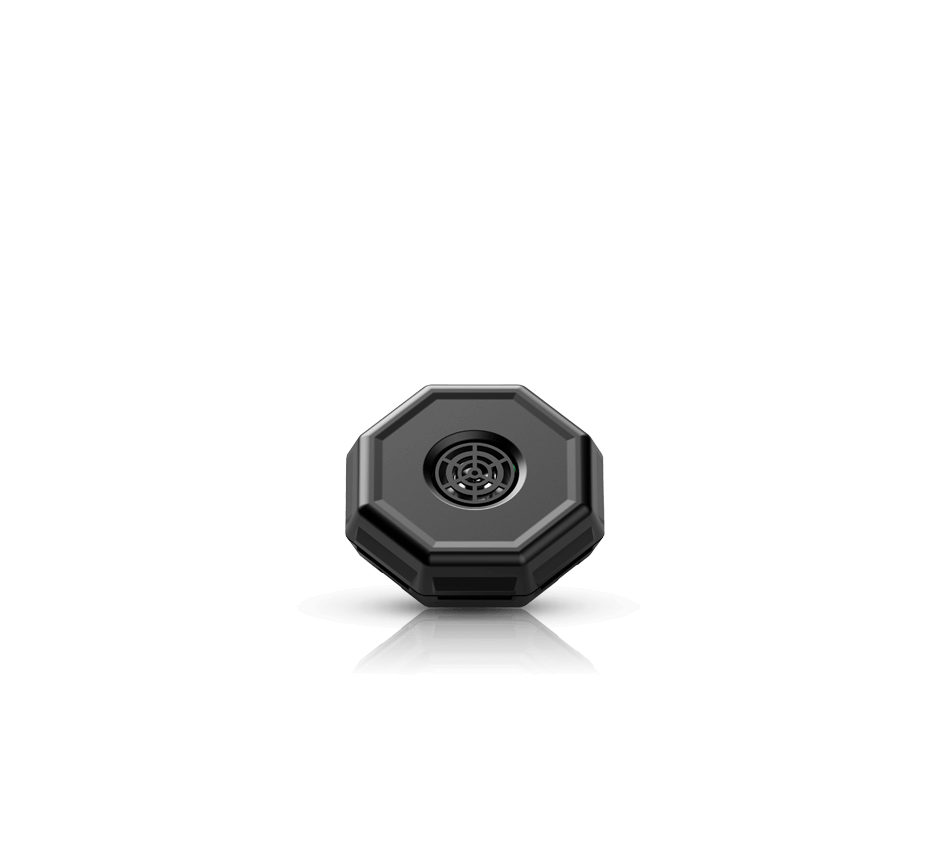

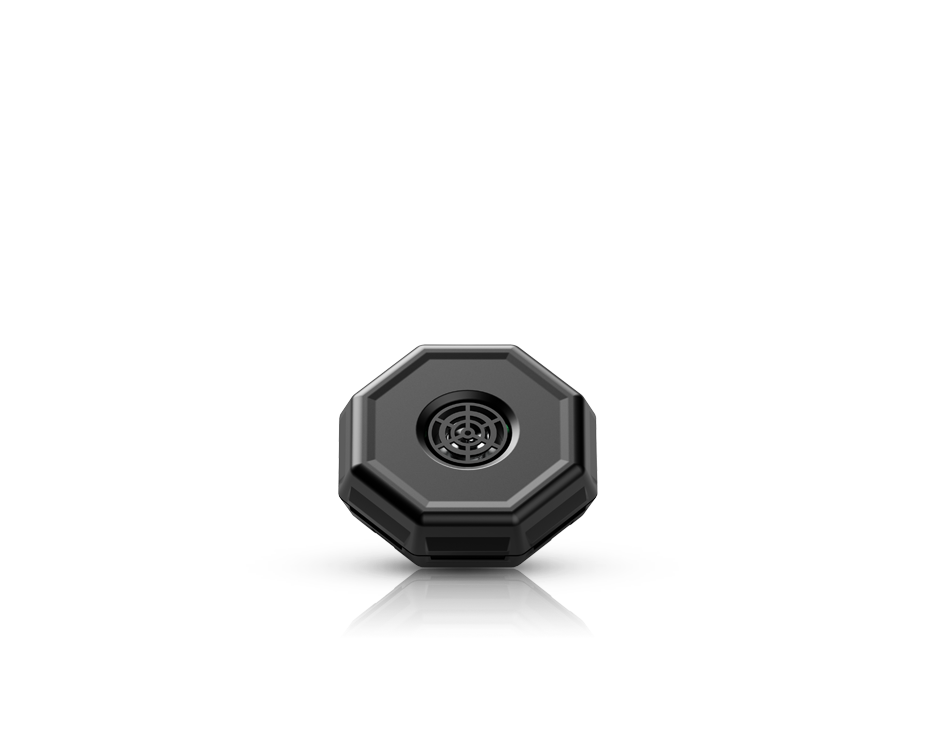

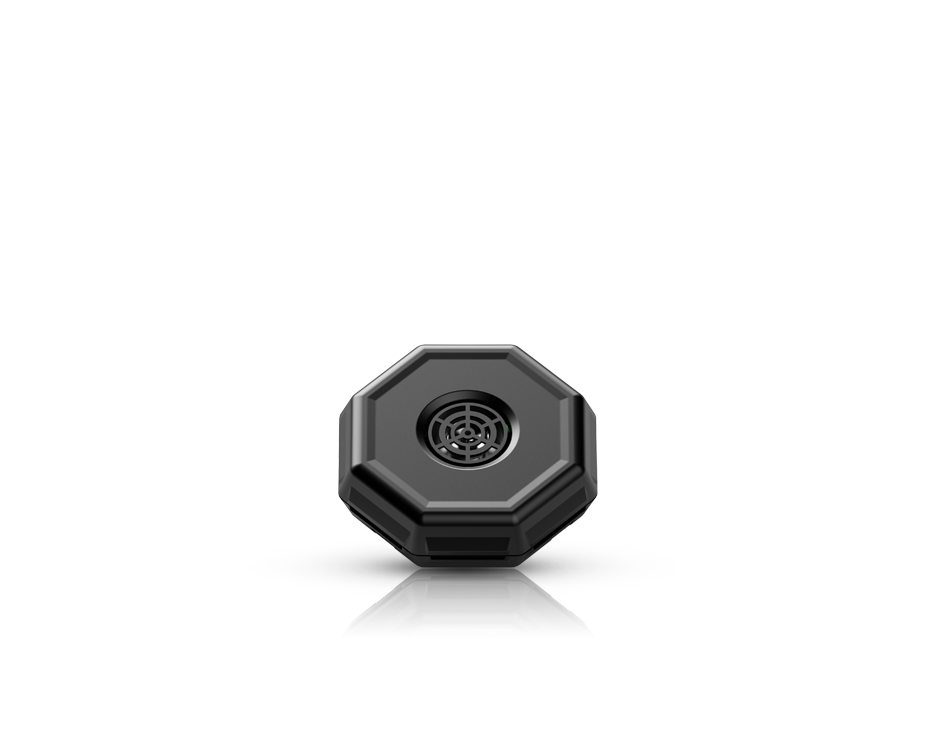

QTM - DMC10
- Ultra-Compact Coin Cell Battery (CR2032) Mobile
- Continuous Product & Order Traceability
- Supply Chain Automation Solution
- Up to 6-Month Battery Life
- Compact, Rugged Design

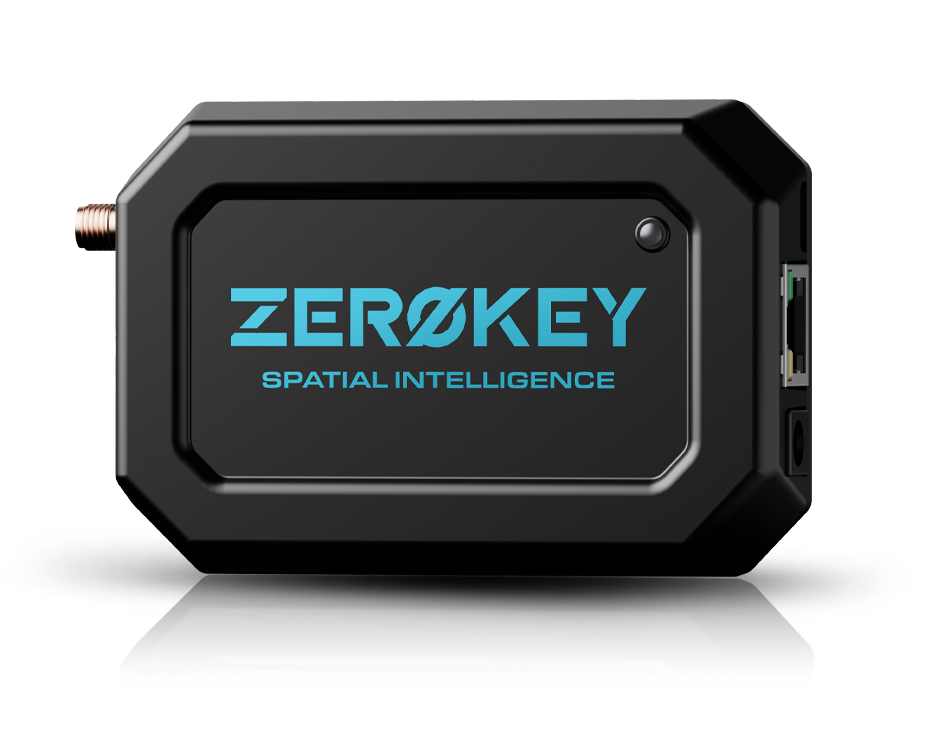

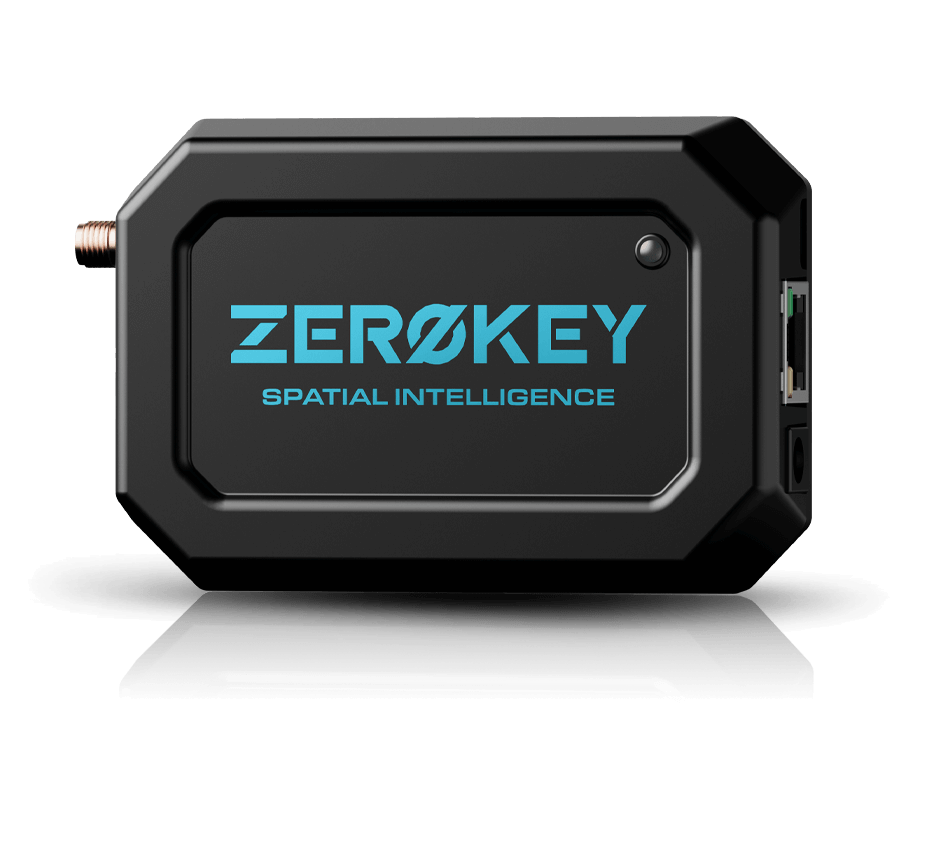

QTM - AGP10
- Quantum RTLS 2.0 Gateway with PoE+ (802.3at)
- External Antenna (up to 300m Broadcast Range)
- Low-Latency Communication
- Bluetooth & Wi-Fi Coexistence
- Seamless Spatial Analysis with Edge Device

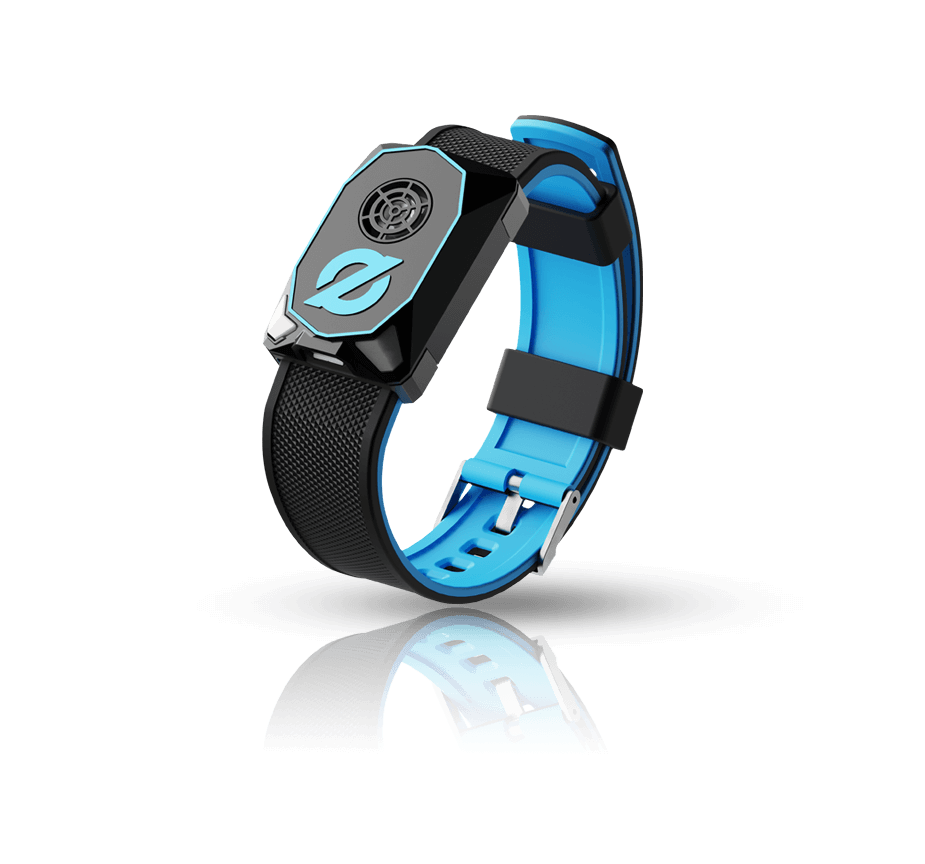

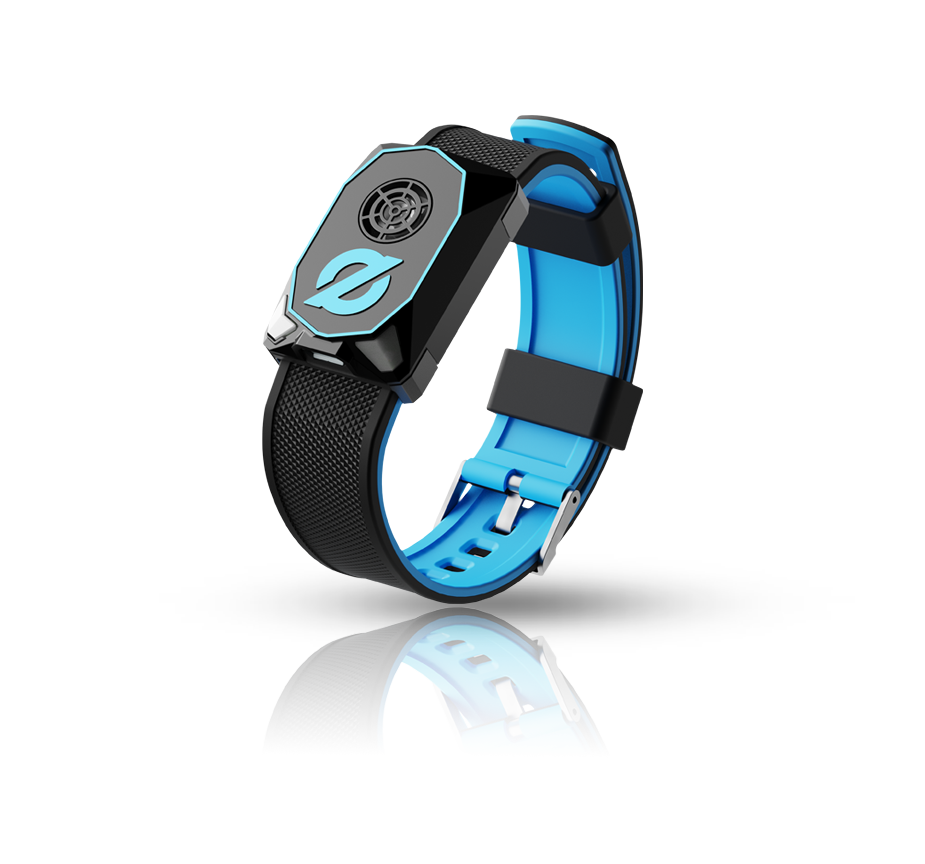

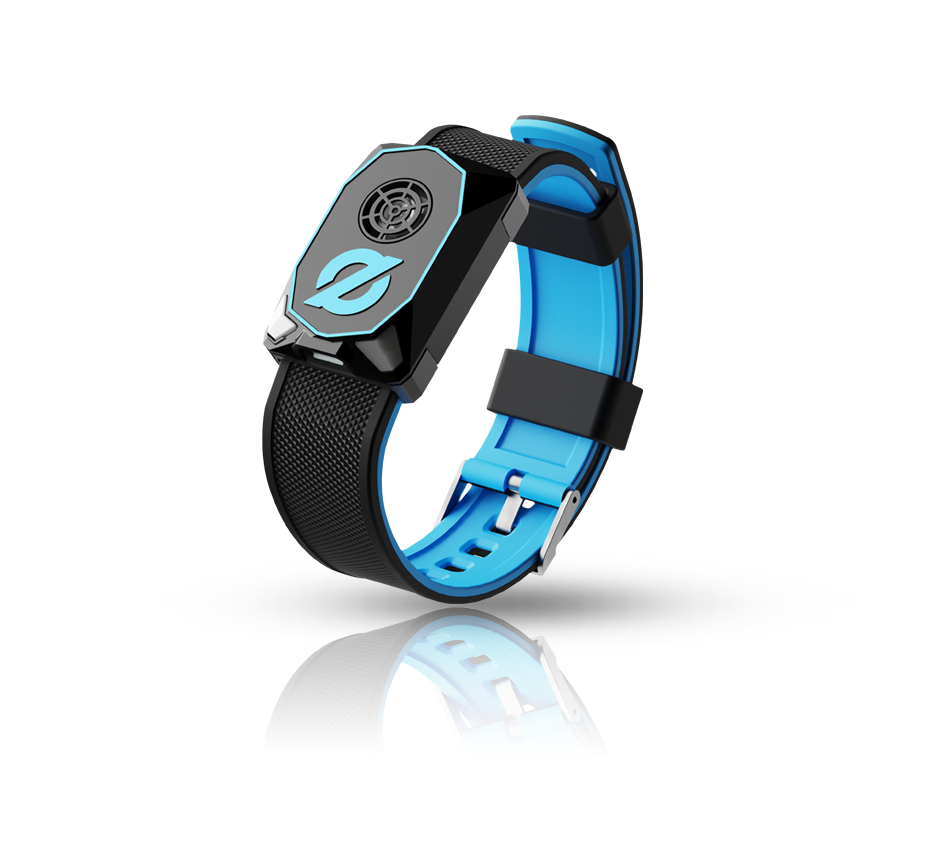

QTM - DWR10
- Lightweight Wearable Wristband Mobile
- 24-Hour Battery Life
- Micro-USB Rechargeable Li-Ion Battery
- Digitizes Human-Centric Processes in Real-Time
- Status LED & Push-Button for Event Triggering

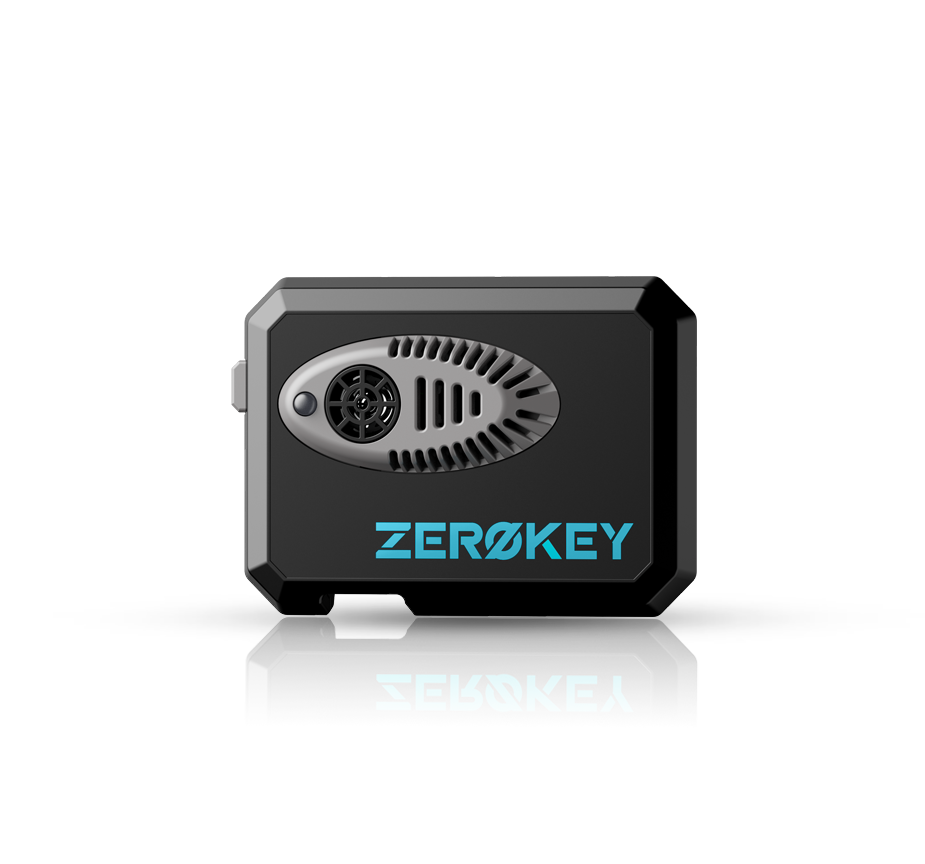

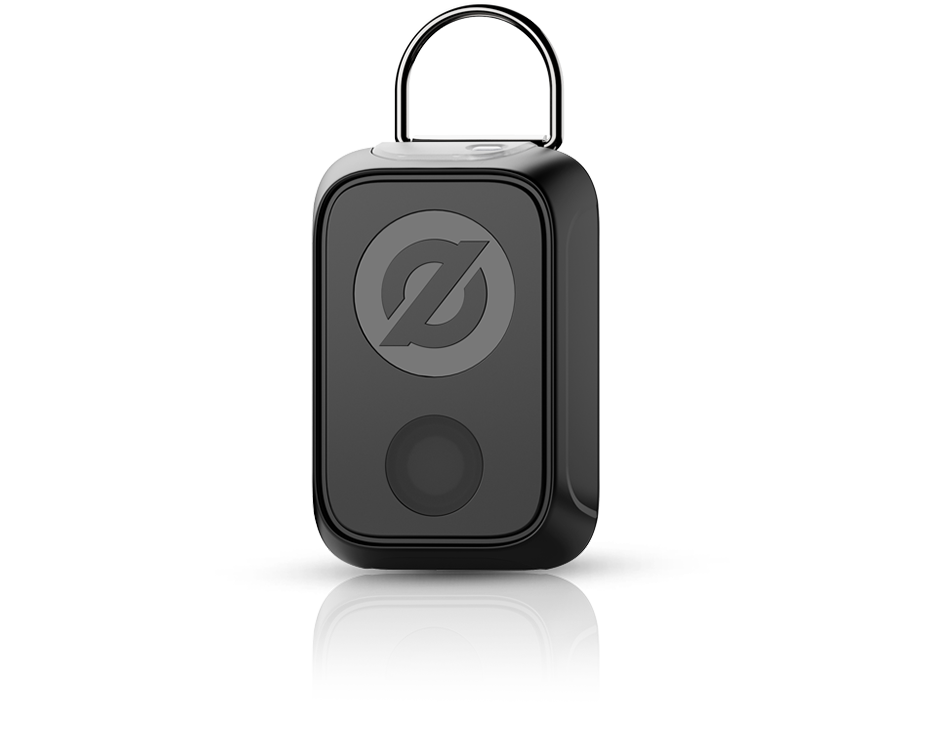

QTM - SMR10
- Lightweight Wearable Mobile for Worker Safety
- Visual, Haptic & Audible Alarm
- Hyper-Accurate, Always Available Position
- Rapid Deployment
- Provides Total Operational Visibility
TRANSFORM SPATIAL DATA INTO SPATIAL INTELLIGENCE
ZeroKey’s Spatial Intelligence Platform automatically organizes, identifies and interprets location data to represent your enterprise operations in 3D. Spatial analysis becomes effortless as the complexity of understanding spatial data is eliminated. Interferences of spatial relationships are decoded, allowing you to solve operational problems before they happen.
TECHNOLOGY COMPARISON
Leveraging proprietary technology with over 30 patents, Quantum RTLS 2.0 uses a combination of anchor nodes, mobile nodes, and gateways to track the assets, processes, goods and people critical to your enterprise with 1.5mm 3D accuracy – a 100-fold accuracy gain over the next closest competitor. Due to deployment complexity, traditional RTLS platforms have been limited to applications that require permanent installations. With the flexibility, simplicity and speed of Quantum RTLS 2.0, the system supports temporary and permanent deployments ranging from large-scale wide-area coverage to localized work-area coverage.
| ZeroKey | UWB | BLE | Wi-Fi | RFID | |
|---|---|---|---|---|---|
| Accuracy | +/- 1.5 mm | +/- 150 mm XY+/- 500 mm Z | +/- 1000 mm | +/- 3000 mm | Proximity |
| 2D or 3D | 3D | 3D | 2D | 2D | Proximity |
| Infrastructure Spacing | 20 m | 40 m | 20 m | 15 m | 10 m |
| Self Calibrating | |||||
| Battery Life | N/A | ||||
| Total Cost of Ownership | $$ | $$ | $$ | $$ | $ |
BOOK A SALES CALL
WANT MORE INFO?
DOWNLOAD OUR WHITE PAPER
ZeroKey’s Quantum RTLS 2.0 technology is backed by more than thirty patents and extensive research and development! Want to learn why we’re the most accurate RTLS technology in the market? Read all about how we do it in our white paper.
